Informationen zum Teil: Zeiss Axiolab lange Zahnstange für die Querbewegung des 453510 XY Mikroskoptisches (ID: 99972)
Englische Bezeichnung: Zeiss Axiolab long rack for transverse movement of 453510 microscope XY stage
Hauptbild
Beschreibung

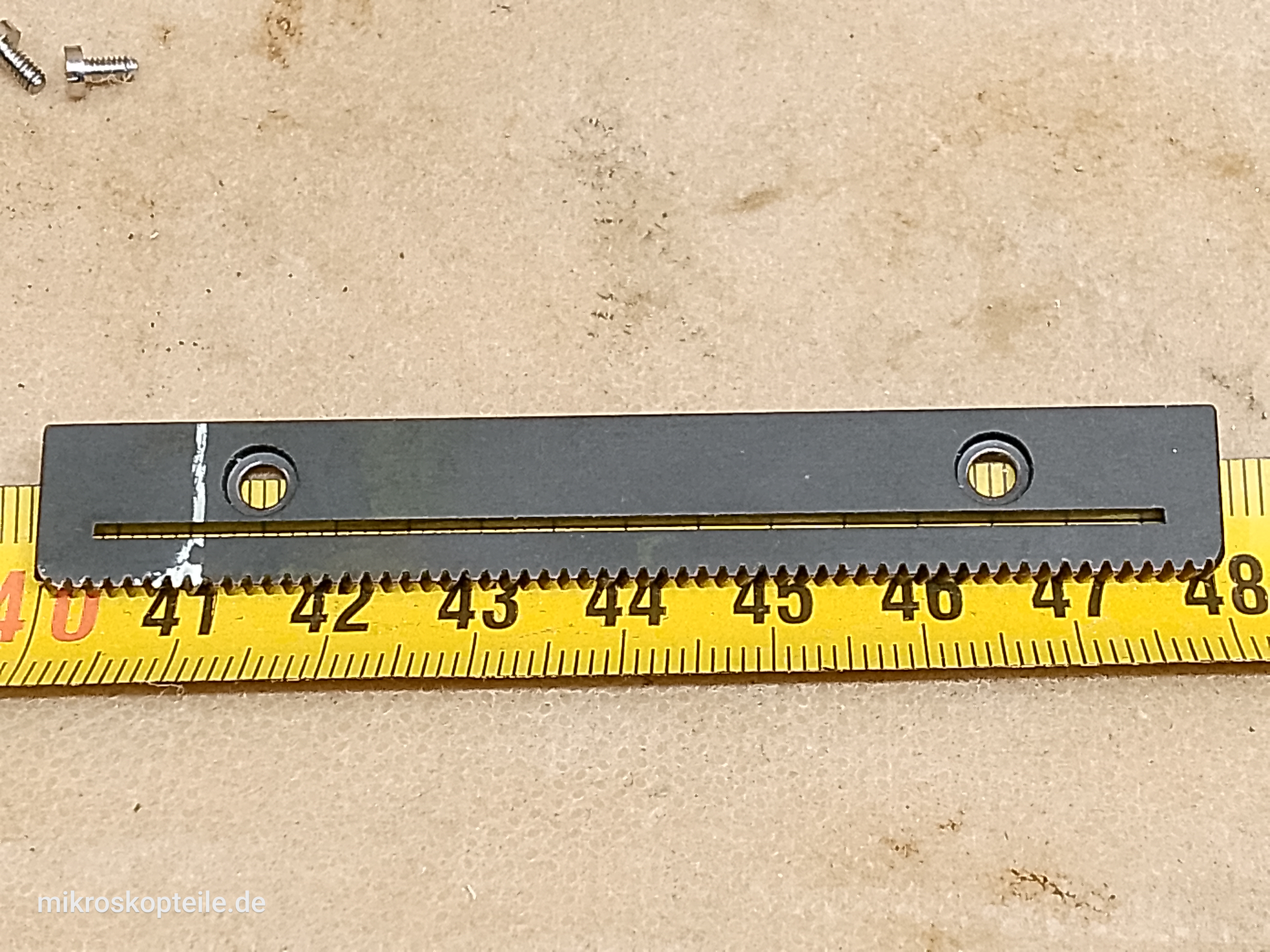

Zeiss Axiolab lange Zahnstange für die Querbewegung des 453510 XY MikroskoptischesRack for the transverse movement, that is a repair part for the Carl Zeiss 45 35 10 microscope stage used in Zeiss Axiolab microscopes and similar models.
This is the rack - the longer of the two in the stage - that works together with the inner pinion of the stage manipulator ([[ LINK ]]), that is with the pinion of smaller diameter, and is responsible for moving the specimen holder with the spring clip sideways.
Basic data of this rack:
- Length of the rack
- 80 mm
- Width of the rack
- 12 mm
- Number of teeth
- 59
- Material
- brass (this matters, because the shorter rack is made of plastic)
- How it is fixed
- with 2 screws, which are included
- Removed from
- the mechanical XY stage Zeiss 45 35 10
- Which microscope this stage worked with
- the Zeiss Axiolab re 45 09 05 microscope
Important: there are two racks of different length in the Zeiss 453510 microscope stage. The one I am offering here is the longer one, made of brass, responsible for the transverse movement of the specimen holder. This is not the shorter plastic rack responsible for moving the stage plate in the front-back plane.
The stage this rack comes from was mounted in a Zeiss Axiolab re microscope, P/N 45 09 05 (also written as 450905). However, the same stage model is also mounted on the following variants:
- Zeiss Axiolab drb KT, which carries the same number 45 09 05 (450905)
- Zeiss Axiolab E re, 45 09 07 (450907)
- Zeiss Axiolab A, 45 09 09 (450909)
- Zeiss Axiolab Pol, 45 09 10 (450910)
This item is not a spare part for repairing a microscope. It is a component of the microscope stage - and the stage can be used with any compatible Zeiss microscope, and even with others, onto whose stage carrier such a stage can be fitted or screwed on.
Detailed photos of this rack are available in the gallery. Every photo shows a scale with a millimetre division. The last photo shows the whole Zeiss 453510 microscope stage, with an arrow pointing at the component in question and at where it sits in the stage, so that this part can be identified without any doubt.
